An unexpected hydraulic failure does not just halt your machine; it bleeds your profit margins. Between emergency service calls and expedited replacement parts, a blown pump or damaged hydraulic lines can easily cost thousands in downtime dollars.
Fortunately, the most effective defense against catastrophic failure is also the easiest to perform. Regularly checking your hydraulic fluid level daily is the best preventive measure to ensure optimal performance of your construction equipment.
Read on to learn how to check hydraulic oil levels, and don’t forget to save the daily record checklist at the bottom of the page. These methods will help protect your investment and ensure your equipment operates at peak performance.
Why You Must Check Hydraulic Fluid Levels Regularly
Hydraulic fluid is the lifeblood of your heavy machinery, providing power to cylinders and valves. Running a system on low hydraulic fluid levels or degraded oil is a guaranteed path to component failure.
Consistently monitoring your hydraulic reservoir provides critical benefits, as air or water contamination accounts for over 80% of hydraulic system failures. Proper hydraulic fluid levels safeguard your equipment in several key ways:
- Optimal Lubrication: Protects tight-tolerance internal components from destructive metal friction and wear.
- Heat Dissipation: Adequate fluid volume prevents overheating during heavy operations.
- Seal Longevity: Proper hydraulic fluid levels prevent air introduction, which can quickly dry out and blow your seals.
Fluid negligence is the primary culprit behind costly breakdowns and damaged hoses. Regular fluid checks prevent minor fluid loss from turning into serious issues and ensure your machinery continues to deliver optimal performance.
If you need new parts, check out these reliable excavator parts to keep your fleet running smoothly.
Preparation & Personal Protective Equipment
Never rush a fluid check because a hydraulic system operates under immense pressure and extreme temperatures. Taking safety shortcuts puts both you and your equipment at severe risk.
Always follow standard OSHA lock-out procedures before conducting your hydraulic maintenance. Turn off the engine and lower all attachments to the ground. Cycle the hydraulic controls to bleed off any trapped system pressure.
Park your equipment on flat ground to ensure an accurate reading. Ideally, check the fluid when the oil is slightly warm, as fluid expands with temperature. Before you begin, gather a clean rag, a heavy-duty flashlight, nitrile gloves, and safety glasses for eye protection.
|
Warning/Important: Never open a pressurized fill cap immediately after operation. Shutdown the engine and loosen the cap slowly to allow residual pressure to hiss out. |
How to Check Hydraulic Oil Levels the Correct Way
Method 1: Dipstick Inspection
The traditional dipstick method is the most common way for checking hydraulic fluid levels for dozers, backhoe loaders, and older machinery. Finding the hydraulic tank and dipstick is the first step in your inspection. Consult your manufacturer's manual for the exact location if you are unsure.
Wipe completely around the cap and neck with a lint-free rag to remove dirt and contaminants. Even a single grain of sand dropping into the oil tank can damage hydraulic cylinders, a common cause of hydraulic fluid leaks.
Remove the dipstick, clean it, and re-insert it fully to check the oil level. Pull it out again to read where the oil sits relative to the low and high marks. If the level is below the add mark, use a clean funnel to add the proper type of precise fluid. Follow these steps for an accurate hydraulic fluid check:
- Locate the reservoir and clean the area.
- Measure the level accurately with the gauge.
- Top off if necessary to reach the correct level.
- Final verification of the fluid level.
Choosing the right fluid depends on operating temperatures. ISO 46 is best for moderate climates. ISO 68 is a heavier viscosity weight designed for hot summer temperatures where thinner oils lose their protective film. Using high-quality John Deere loader parts and proper fluid can help keep your hydraulic system running smoothly and extend the life of your equipment.
Method 2: Sight-Glass Inspection
Modern excavators typically utilize a sight glass mounted directly on the side of the hydraulic reservoir. This allows for a fast and visual inspection without opening the system to the elements. Find the sight glass and wipe it completely clean with your rag to ensure a clear view.
Ensure the oil line rests squarely between the minimum and maximum lines stamped next to the glass. If it is too low, add fluid through the main service cap. If it is overfilled, drain the excess via the bottom service plug to achieve the correct hydraulic levels.
Start the machine and let it idle to circulate the fluid through the hydraulic pump. Shut it down, bleed the pressure, and verify the sight glass again. Correct fluid levels here are crucial for maintaining optimal performance and preventing damage to other components.
|
Pro Tip: Never fill above the maximum line. Excess fluid leaves no room for thermal expansion, leading to severe foaming. Aerated hydraulic fluid causes spongy controls and pressure spikes that will blow out your cylinder seals. |
Method 3: Machine-Specific Call-Outs (Sidebar Capsules)
Every piece of equipment requires a specific resting posture before checking hydraulic fluid levels. Failing to stage the machine correctly will give you inaccurate readings and false data. Always consult your manufacturer's manual to verify the specific posture required to get an accurate reading.
For an excavator, park on level ground and fully lower the boom. Extend the stick and curl the bucket completely inward so it rests flat on the dirt. This ensures all fluid returns to the main oil tank for an accurate measurement.

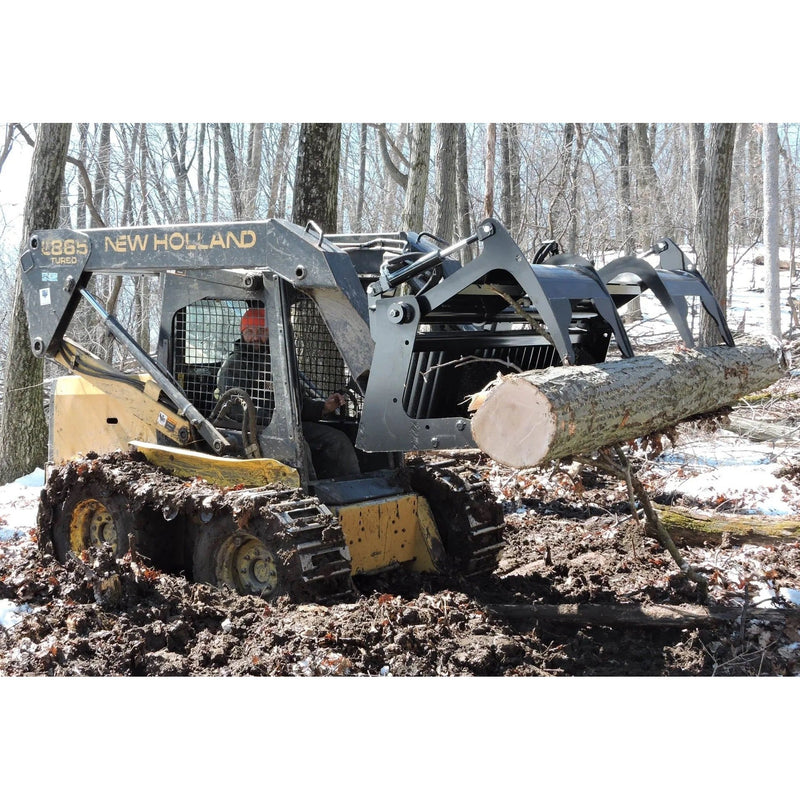

When dealing with skid steers, raise the loader arms and securely engage the mechanical safety lock. Shut off the engine before inspecting the fluid level. If you operate telehandlers, ensure the boom is fully retracted and lowered with the forks resting perfectly level.
You can also upgrade your setup with heavy-duty pallet forks for skid steer equipment. Having proper parts and components ensures your machine handles heavy loads safely and efficiently.
Method 4: Extra Hydraulic Oil Maintenance Tips
Regularly checking the hydraulic level is just half the battle when maintaining heavy equipment. Keeping an eye on the fluid's appearance and overall fluid condition is what keeps you out of the repair shop.
Replace your hydraulic filter every 500 hours or strictly follow the manufacturer's recommendations for maintenance intervals. Do not skip this crucial maintenance step. Investing in high-quality replacement filters traps microscopic debris before it destroys your expensive hydraulic pump.
Hydraulic fluid degrades rapidly if the system runs too hot for extended periods, altering its color and quality. The system should not exceed 82 °C during normal operation. Monitoring temperatures closely helps prevent severe oxidation and protects your system from irreversible internal damage.
- Milky Appearance: Indicates severe water contamination and fluid issues.
- Burnt Smell: A sign of fluid oxidation and extreme heat.
- Metal Flakes: Evidence of active internal component wear and highly contaminated oil.
- Dark Color: While new hydraulic oil is typically clear or light, dark brown means it is breaking down.
Quick Troubleshooting Tips
Having trouble diagnosing an issue at the reservoir? Overfilling causes aeration and foaming, which leads to overheating and seal blowouts. You must drain the excess fluid via the lower service plug.
Murky or milky fluid means water contamination has infiltrated your system through condensation or a breached seal. The fluid must be completely flushed and replaced immediately to restore quality. Diagnosing the exact source of the moisture is essential to prevent a recurrence.
If you are constantly topping off the fluid, you likely have a leak. The most common culprits are worn-out hydraulic cylinder seals. Investing in premium Case aftermarket parts can help you fix these persistent leaks quickly.
Downloadable 10-Point Checklist
Standardize your daily walk-arounds by utilizing an easy-to-use checklist. Pin it to your service truck clipboard, so your operators never miss a step. Consistency is the key to preventing unexpected breakdowns and ensuring a correct level of fluid.
Start by verifying level ground and applying lock-out procedures. Bleed residual pressure and equip your safety gear before touching any caps. Clean the surrounding area thoroughly to prevent contamination.
Inspect the dipstick or sight-glass level and scan for fluid foaming. Check for milky or burnt contamination to assess fluid health. If needed, top off with specified fluid and log the maintenance in your record book.
- Verify the level of the ground
- Apply lock-out/tag-out
- Bleed residual pressure
- Equip safety gear
- Clean the cap, fill port, and the surrounding area
- Inspect the dipstick or sight-glass level
- Scan for fluid foaming
- Check for milky/burnt contamination
- Top off with OEM-spec fluid
- Log maintenance in the record book
Keep Machines Moving, Wallets Happy
Knowing how to check hydraulic oil levels is essential for protecting your heavy equipment and preventing costly breakdowns. Just five minutes spent checking hydraulic fluid levels can prevent catastrophic pump failures, save thousands in downtime dollars, and extend the life of your equipment significantly.
Bookmark this guide before your next job site run to ensure you always have the right specs on hand. Consistent maintenance is the ultimate key to a profitable operation. Stay safe and keep your heavy machinery running at peak performance.
