Cylinder Seal Installation Diagram

FREE U.S. SHIPPING on Seal Kit & Hose Orders over $150!

Search by Make & Model

1 comment

Seal Installation

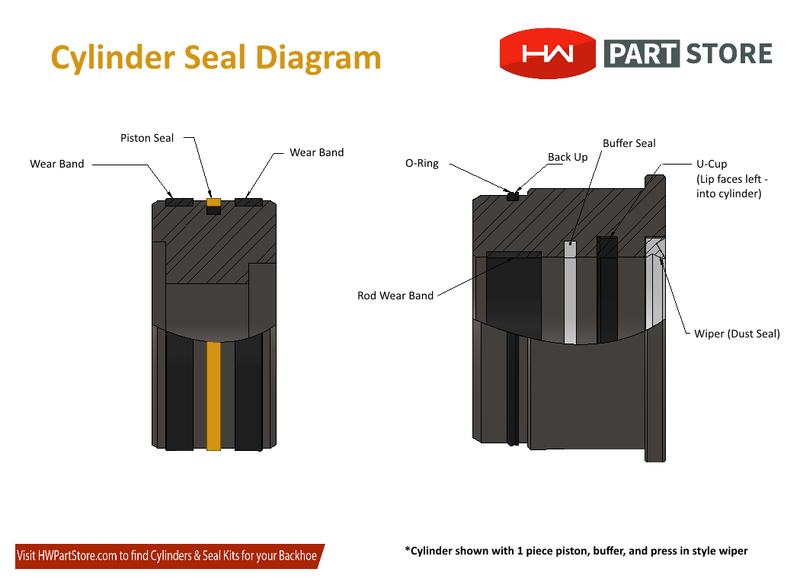

Shown above is the seal arrangement in a typical cylinder with a one piece piston, buffer seal, and press in style wiper. Always install U-Cup with lip facing into the cylinder. Click here for instructions for U-Cup installation.
