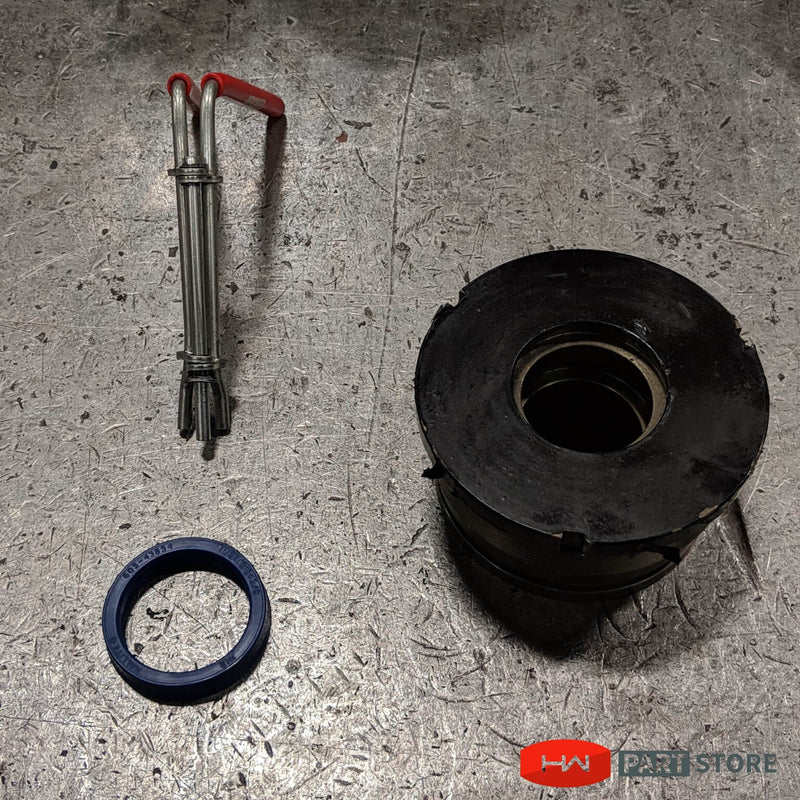

There are several methods to install the U-Cup seal into a hydraulic cylinder. The method will depend on the size and shape of the U-Cup. In general, you will want to use a tool to install smaller or thicker U-Cups. Thin and flexible seals can generally be installed by hand. Please see the instructions below for both types of installation. It is important that your seals and cylinder parts are free from dirt and debris before you begin.

U-Cup installation tools are available for purchase on our website.

Installing without a tool

1. Position your gland so that the outermost part of the cylinder is facing upward.
2. With the lip of the seal facing downward, squeeze the seal on the outer edge with your fingers into a kidney bean shape.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

3. Insert the end of the folded seal into the groove of the cylinder gland.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

4. Using your fingers, work the seal into the groove.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

5. Visually inspect that the seal is seated properly.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store



Installing with a tool

U-Cup installation tools are available for purchase on our website.

1. Position your gland so that the outermost part of the cylinder is facing upward.

 Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

2. With the lip of the seal facing downward, position the two prongs connected to the handles inside the seal.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

3. Turn the handles of the tool so that the seal is twisted into the form show in the picture below.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

4. Insert the seal into the groove of the gland and release the handles while maintaining alignment.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store

5. Visually inspect that the seal is seated properly.

Installing U-Cup Seals in Hydraulic Cylinders | HW Part Store
