Description
-
85mm x 120mm & 8 Bolt Head Type 1
- Serial Numbers: 1XS00001 - Up; 2AS00001 - Up; 3YZ00001 - Up; 5MS00001 - Up; 7JR00001 - Up; 9WS00001 - Up;
- Cylinder #s: 1184128
- Rod: 85 mm
- Bore: 120 mm
- 8 Bolt Head
- 2 Piston Wear Rings, 35 mm and 6 mm Wide
-
85mm x 120mm & 8 Bolt Head Type 2
- Serial Numbers: 1XS00001 - Up; 2AS00001 - Up; 3YZ00001 - Up; 5MS00001 - Up; 7JR00001 - Up; 9WS00001 - Up;
- Cylinder #s: 1589058
- Rod: 85 mm
- Bore: 120 mm
- 8 Bolt Head
- 3 Piston Wear Rings, 2 15.45 mm and 1 6 mm Wide
-
85mm x 120mm & 12 Bolt Head
- Serial Numbers: 1ES00001 - Up; 4NR00001 - Up; 4XW00001 - Up; 5BR00001 - Up; 5GW00001 - Up; 6LS00001 - Up; 9JS00001 - Up; BAN00001 - Up; BBG00001 - Up;
- Cylinder #s: 1184023, 1540727
- Rod: 85 mm
- Bore: 120 mm
- 12 Bolt Head
-
95mm x 160mm
- Serial Numbers: 1XS00001 - Up; 3YZ00001 - Up; 5MS00001 - Up; 7JR00001 - Up; 9WS00001 - Up;
- Cylinder #s: 1842614
- Rod: 95 mm
- Bore: 160 mm
-
100mm x 140mm
- Serial Numbers: 6LS00001 - Up; 6LW00001 - Up; 9WS00001 - Up;
- Cylinder #s: 1336770
- Rod: 100 mm
- Bore: 140 mm

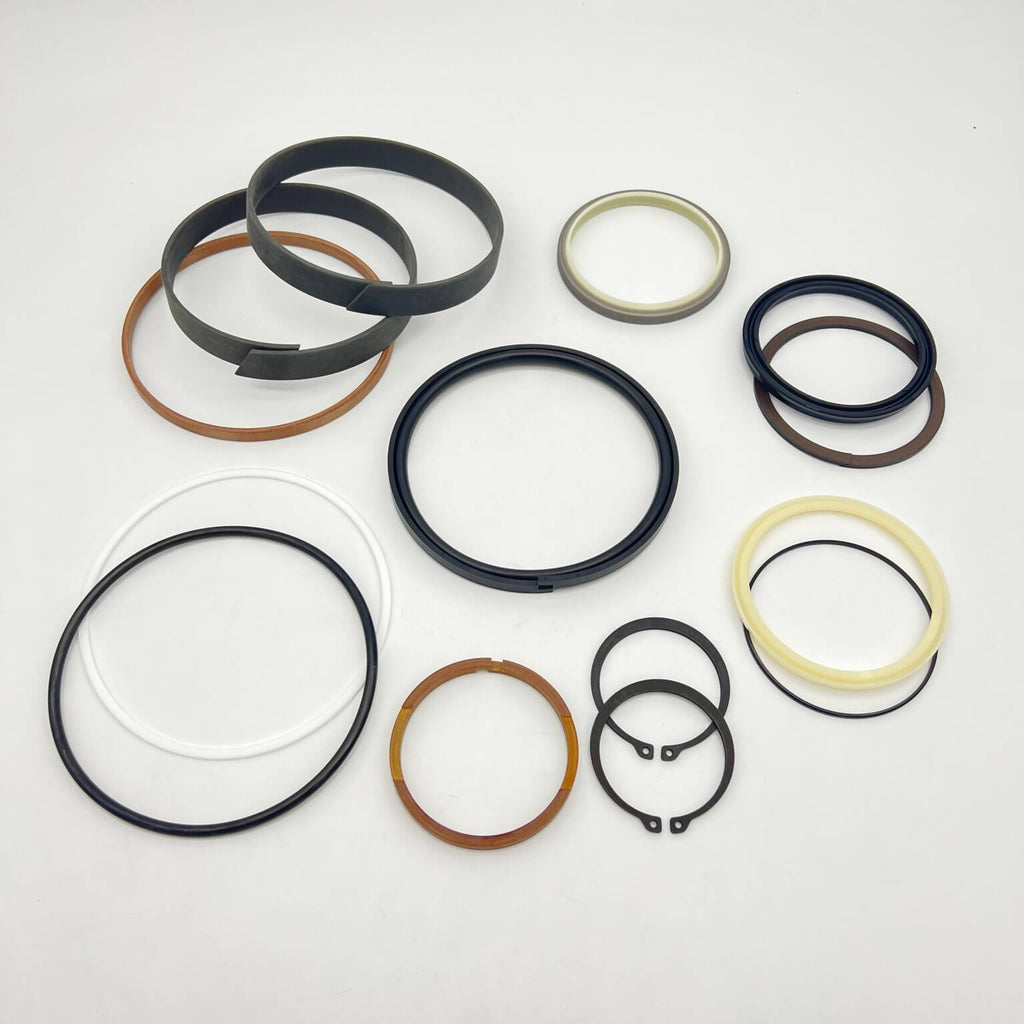

Cylinder Rebuild/Repair Seal Kit for Caterpillar 320B, 320B L, 320B LN, 320B N, & 320B S Excavators
Please Choose the Option that matches your Machine
