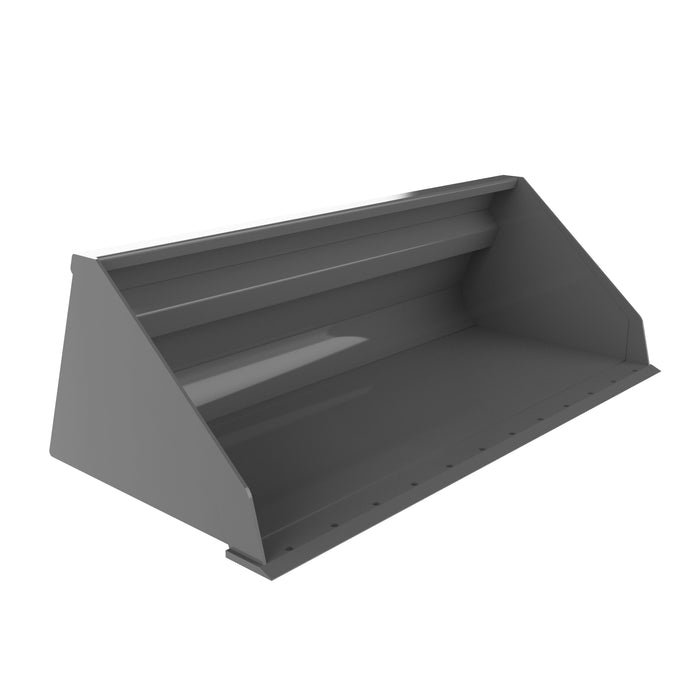

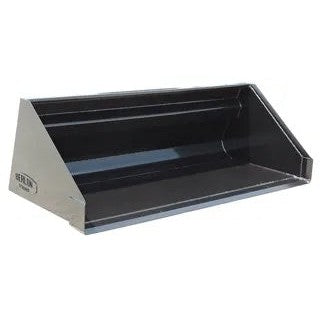

Description
- Made In America with American Steel
- This high-back bucket can be used for a variety of applications that need additional capacity
- 3/16" Thick Grade 50 Steel Body
- 3/4" x 6" Weld-On Cutting Edge with Holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
- 1 Year Manufacturer's warranty that includes any product defects including materials or welds
- Comes Standard with a Universal Skid Steer Mounting Plate, but other mounting plate styles can be selected. Please confirm your mounting style prior to ordering as it is not possible to change after they have been welded on. All mounting plate styles except the Universal Skid Steer Mount are considered custom orders and cannot be returned.
- The (HD) Heavy Duty mounting package is available for the 72", 78", 84" Buckets. It Includes extra reinforcement along the back of the bucket and additional reinforcement to the mounting plate. HD Packages are recommended for use with machines over 75 HP and all tracked machines.
- View All Berlon Buckets
| Bucket Width (in.) | Outside Width (in.) | Weight (lbs.) | Heaped Capacity (cu. ft.) |
| 60" | 61.5" | 462 | 21.9 |
| 66" | 67.5" | 498 | 24.1 |
| 72" | 73.5" | 532 | 26.3 |
| 78" | 79.5" | 579 | 28.4 |
| 84" | 85.5" | 611 | 30.6 |
Options
All Options come installed when ordered with your bucket
-
Bolt-On Cutting Edge
This Bucket comes equipped with a welded on cutting edge however with the double sided bolt-on cutting edge you can easily unbolt, flip, and re bolt in the removable cutting edge if it ever wears out. Reversible 3/4" x 8" Beveled Edge. Made from C-1080 High Carbon Steel.
Added Weight by Bucket Width:
| 60" | 66" | 72" | 78" | 84" |
| 92 lbs. | 101 lbs. | 116 lbs. | 122 lbs. | 130 lbs. |
-
Bolt-On Rake Tooth Edge
Berlon's Rake Tooth Edge will bolt right on top of the bucket's welded on cutting edge to add versatility when breaking up and leveling soil. 3/4" x 8" Beveled Edge. Teeth approximately 4-1/2" Long & 2" Wide. Spaced approximately 1" between teeth. Made from C-1080 High Carbon Steel.
Added Weight by Bucket Width:
| 60" | 66" | 72" | 78" | 84" |
| 76 lbs. | 81 lbs. | 93 lbs. | 101 lbs. | 108 lbs. |
-
Bolt-On Tooth Bar
Easily move from the weld on cutting edge to a toothed bucket with a bolt-on tooth bar. Fits over the standard weld on cutting edge on the bucket (Cannot be combined with Bolt-On Cutting Edge or Rake Tooth Edge). Heavy Duty shank fabricated with replaceable #23 teeth. Built in adjustment to pull bar tight to cutting edge.
Added Weight by Bucket Width:
| 60" | 66" | 72" | 78" | 84" |
| 80 lbs. | 90 lbs. | 97 lbs. | 105 lbs. | 114 lbs. |
-
Bolt-On Tooth Bar Over Bolt-On Cutting Edge
Get the best of both worlds with a bolt on cutting edge AND a bolt-on tooth bar. this option comes with the bolt-on cutting edge mentioned above, and a special bolt-on tooth bar that is designed to fit snuggly over the bolt-on cutting edge.
Added Weight by Bucket Width:
| 60" | 66" | 72" | 78" | 84" |
| 187 lbs. | 205 lbs. | 230 lbs. | 245 lbs. | 263 lbs. |
-
Bolt-On Individual HD Teeth
There Bolt-On heavy duty teeth bolt directly onto the weld-on cutting edge of the bucket. Overall Length: 12" Usable Length: 5-1/2". The 60", 66", & 72" Bucket will use 7 Teeth and the 78" & 84" will take 8 Teeth.
Added Weight by Bucket Width:
| 60" | 66" | 72" | 78" | 84" |
| 42 lbs. | 42 lbs. | 42 lbs. | 48 lbs. | 48 lbs. |
-
Spill Guard
This Weld-On guard prevents material from spilling over the back of the bucket while still allowing visibility of the cutting edge. Height: 9" above bucket. Length: 55". Added Weight: 46 lbs.
