Case 850B, 850C, 850D, 850E Dozer Blade Parts


Quality Aftermarket Replacement Links, Pins, Bushings, & Parts for Case 850B, 850C, 850D, 850E Crawler Dozers

Made In America

All Pins & Bushings made from 4140 steel and heat treated to 65 Rockwell hardness for longer wear

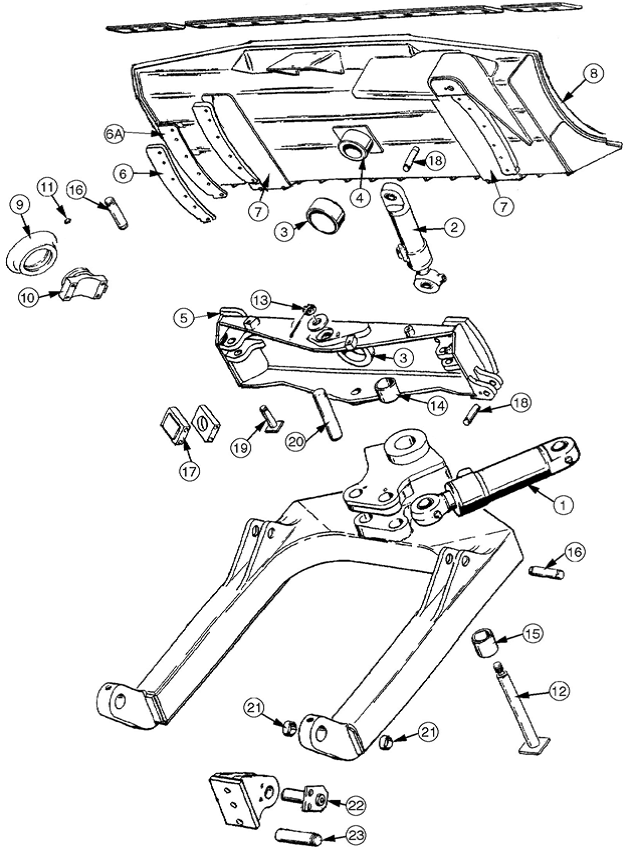

Case Dozer Blade Parts


Case 850B, 850C, 850D, 850E Dozer Blade Swivel Ring, Outer - 3
Made In America Part #: 100195A1 Drawing Ref # 3 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Swivel Ring, Outer Qty per Machine: 1 ...
$ 177.07
Case 850B, 850C, 850D, 850E Dozer Blade Swivel Ring, Inner - 4
Made In America Part #: R44319 Drawing Ref # 4 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Swivel Ring, Inner Qty per Machine: 1 ...
$ 323.34
Case 850B, 850C, 850D, 850E Dozer Blade Rub Plate - 5
Made In America Part #: 100196A1 Drawing Ref # 5 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Rub Plate Qty per Machine: 2 ...
$ 192.47
Case 850B, 850C, 850D, 850E Dozer Blade Wear Plate - 6
Made In America Part #: 128865A1 Drawing Ref # 6 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Wear Plate Qty per Machine: 2 ...
$ 223.26
Case 850B, 850C, 850D, 850E Dozer Blade Shim - 6A
Made In America Part #: R31647 Drawing Ref # 6A Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Shim Qty per Machine: 4 ...
$ 26.17
Case 850B, 850C, 850D, 850E Dozer Blade Rub Plate L/H - 7
Made In America Part #: 100256A1 Drawing Ref # 7 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Rub Plate Left Hand Qty per Machine: 1 ...
$ 161.67
Case 850B, 850C, 850D, 850E Dozer Blade Rub Plate R/H - 7
Made In America Part #: 100255A1 Drawing Ref # 7 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer Blade Rub Plate Right Hand Qty per Machine: 1 ...
$ 161.67
Case 850B, 850C, 850D, 850E Dozer Blade Face - 8
Made In America Part #: PV502 Drawing Ref # 8 Case 850B, 850C, 850D, 850E Crawler Dozer Dozer 100" Blade Face (102" x 33")  Qty per Machine: 1 ...
$ 923.83
Case 850B, 850C, 850D, 850E Race - Lift Cylinder Trunnion - 9
Made In America Part #: R48191 Drawing Ref # 9 Case 850B, 850C, 850D, 850E Crawler Dozer Race - Lift Cylinder Trunnion Qty per Machine: 2 ...
$ 377.23
Case 850B, 850C, 850D, 850E Lift Cylinder Trunnion - 10
Made In America Part #: R49038 Drawing Ref # 10 Case 850B, 850C, 850D, 850E Crawler Dozer Lift Cylinder Trunnion Qty per Machine: 2 ...
$ 284.84
Case 850B, 850C, 850D, 850E Lift Cylinder Trunnion Ball - 11
Made In America Part #: 211-1024 Drawing Ref # 111 Case 850B, 850C, 850D, 850E Crawler Dozer Lift Cylinder Trunnion Ball Qty per Machine: 38 ...
$ 2.24
Case 850B, 850C, 850D, 850E Pin - Main Center - 12
Made In America Part #: R31968 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 12 Case 850B, 850C, 850D, 850E Crawler Dozer Pin - Main Center Qty per Machine:......
$ 243.56
Case 850B, 850C, 850D, 850E Slotted Nut - 13
Made In America Part #: 25-1224 Drawing Ref # 13 Case 850B, 850C, 850D, 850E Crawler Dozer Slotted Nut Qty per Machine: 1 ...
$ 27.72
Case 850B, 850C, 850D, 850E Bushing - Main Center Upper - 14
Made In America Part #: R31914 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 14 Case 850B, 850C, 850D, 850E Crawler Dozer Bushing - Main Center Upper Qty per Machine:......
$ 54.96
Case 850B, 850C, 850D, 850E Bushing - Main Center Lower - 15
Made In America Part #: R27011 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 15 Case 850B, 850C, 850D, 850E Crawler Dozer Bushing - Main Center Lower Qty per Machine: 1......
$ 46.45
Case 850B, 850C, 850D, 850E Pin - Lift Cylinder - 16
Made In America Part #: D51045 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 16 Case 850B, 850C, 850D, 850E Crawler Dozer Pin - Lift Cylinder  Qty per Machine: 2......
$ 44.84
Case 850B, 850C, 850D, 850E Bushing - Lift Cylinder
Made In America Part #: R32919 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Case 850B, 850C, 850D, 850E Crawler Dozer Bushing -Lift Cylinder Qty per Machine: 4 ...
$ 19.41
Case 850B, 850C, 850D, 850E Plate - Lift Cylinder to Cowl - 17
Made In America Part #: R48604 Drawing Ref # 17 Case 850B, 850C, 850D, 850E Crawler Dozer Plate - Lift Cylinder to Cowl Qty per Machine: 4 ...
$ 92.38
Case 850B, 850C Pin - Tilt Cylinder - 18
Made In America Part #: D34796 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 18 Case 850B, 850C Crawler Dozer Pin - Tilt Cylinder  Qty per Machine: 2 ...
$ 51.42
Case 850D, 850E Pin - Tilt Cylinder - 18
Made In America Part #: R50191 4140 Steel Alloy Heat Treated to 65 Rockwell Hardness Drawing Ref # 18 Case 850B, 850C Crawler Dozer Pin - Tilt Cylinder  Qty per Machine: 2 ...
$ 51.42
