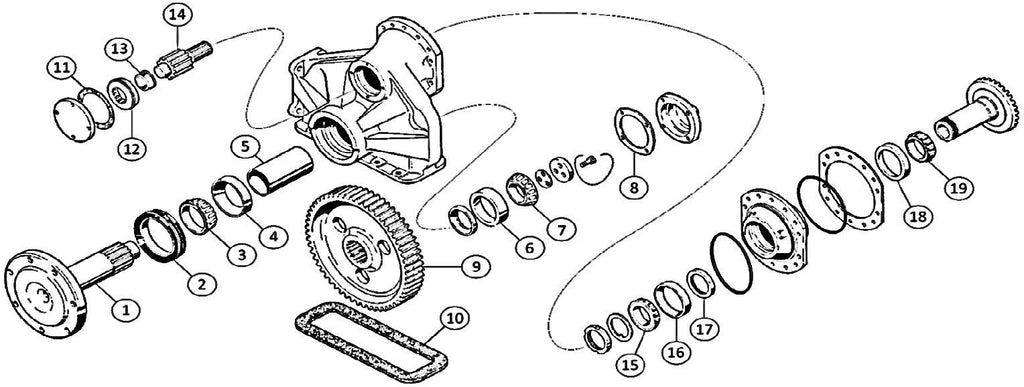

Case 450, 450B, & 455B Final Drive Parts

Made in America Part #: A51737 Drawing Ref # 1 Case 450 Dozer Final Drive Parts Sprocket Shaft - 11-1/2" Length 33 Splines 2-13/16" OD Spline Machine Needs 2

Part #: A50552 Drawing Ref # 2 Case 450 Dozer Final Drive Parts Sprocket Shaft Seal Use with A50484 Shaft Machine Needs 2

Part #: 1981095C1 (replaces G101798) Drawing Ref # 2 Case 450 Dozer Final Drive Parts Sprocket Shaft Seal Use with A51737 Shaft 4-7/8" ID X 6-3/8" OD Machine Needs 2

Part #: A50100 Drawing Ref # 3 Case 450 Dozer Final Drive Parts Sprocket Shaft Bearing Cone Machine Needs 2

Part #: A63185 Drawing Ref # 3 Case 450, 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cone Machine Needs 2

Part #: A27146 Drawing Ref # 4 Case 450, 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cup Machine Needs 2

Part #: A63171 Drawing Ref # 4 Case 450, 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cup Machine Needs 2

Part #: A50213 Drawing Ref # 5 Case 450 Dozer Final Drive Parts Serial Number: Up to 3060306 Sprocket Shaft Spacer Machine Needs 2

Part #: A50179 Drawing Ref # 6 Case 450, 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cup Machine Needs 2

Part #: L35931 Drawing Ref # 6 Case 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cup Machine Needs 2

Part #: G10414 Drawing Ref # 7 Case 450, 450B, 455B Dozer Final Drive Parts Sprocket Shaft Bearing Cone Machine Needs 2

Part #: A50214 Drawing Ref # 9 Case 450 Dozer Final Drive Parts Bull Gear Machine Needs 2 33 Splines 76 Teeth

Part #: A50145 Drawing Ref # 12 Case 450, 450B, 455B Dozer Final Drive Parts Bearing Machine Needs 2

Part #: A50144 Drawing Ref # 13 Case 450, 450B, 455B Dozer Final Drive Parts Bearing Machine Needs 2

Part #: A50143 Drawing Ref # 14 Case 450, 450B, 455B Dozer Final Drive Parts Pinion 24 Spline, 13 Teeth Machine Needs 2

Part #: A50197 Drawing Ref # 15 Case 450, 450B, 455B Dozer Final Drive Parts Bearing Cone Machine Needs 2

Part #: F9803 Drawing Ref # 16 Case 450, 450B, 455B Dozer Final Drive Parts Bearing Cup Machine Needs 2

Part #: A50419 Drawing Ref # 17 Case 450, 450B, 455B Dozer Final Drive Parts Seal Machine Needs 2

Part #: F9803 Drawing Ref # 18 Case 450, 450B, 455B Dozer Final Drive Parts Bearing Cup Machine Needs 2

Part #: PV703 Case 450 Dozer Final Drive Parts Serial Number: Up to 3038435 Final Drive Bearing Kit Machine Needs 2

Part #: PV704 Case 450 Dozer Final Drive Parts Serial Number: 3038436 - Up Final Drive Bearing Kit Machine Needs 2

Part #: PV705 Case 450 & 450B Dozer Final Drive Parts Final Drive Pinion Carrier Bearing Set Machine Needs 2

Part #: G102354 Case 450 & 450B Dozer Final Drive Parts Metallic Disc - 24

Part #: G101711 Case 450 & 450B Dozer Final Drive Parts Steel Disc - 24
